Products

We offer in-situ TEM grids for simultaneous TEM and electrical measurements, ex-situ TEM grids for sequential TEM and electrical measurements, scaffolded silicon nitride grids for general TEM imaging, and all-gold grids for both general TEM imaging and cryo-CLEM.

Electrical
Grids		 Name Measurement
Type		 Dimensions
(mm)		 Electrical
Contacts		 Heating
Contacts		 TEM Holder Type
8x4-4e4h In-situ 8x4 4 0 Thermo/FEI/DENS D9+
4x3-4e2h 3.85x3.175 4 2 Thermo/FEI/DENS D6+
4x3-2e4h 2 4
4x3-4e 3 0 Thermo/FEI/DENS D6
exsitu-4e Ex-situ 3 (diameter) 4* 0 Most TEM holders

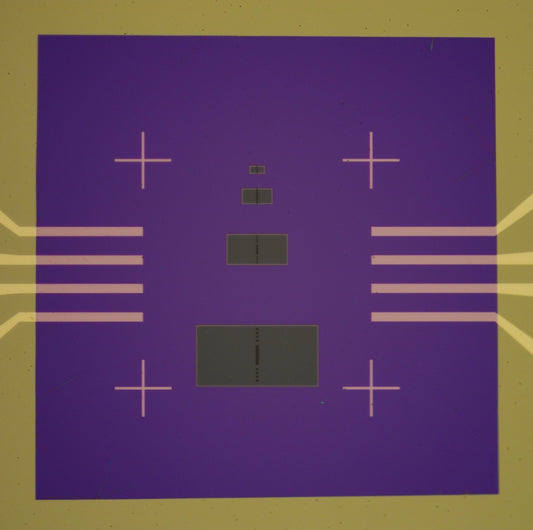

exsitu-0e 0*
Imaging
Grids		 Name Measurement
Type		 Dimensions
(mm)		 Hole
Size (μm)		 Hole
Separation		 TEM Holder Type

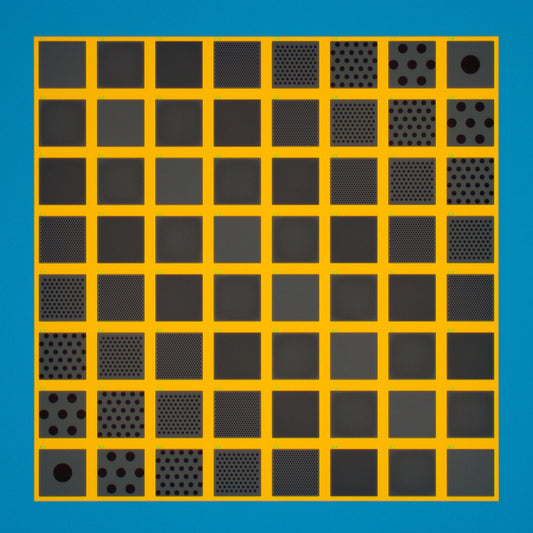

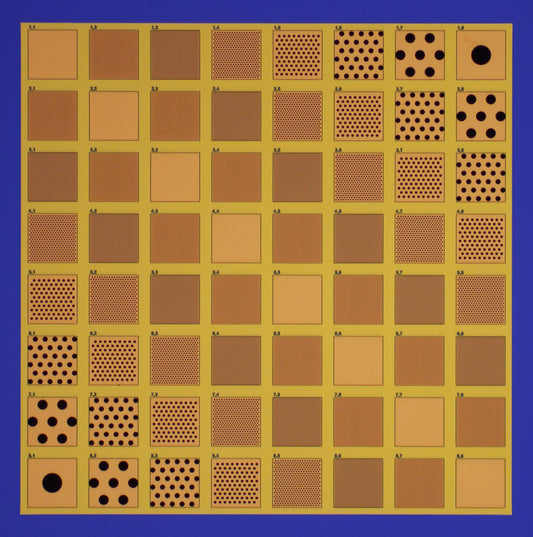

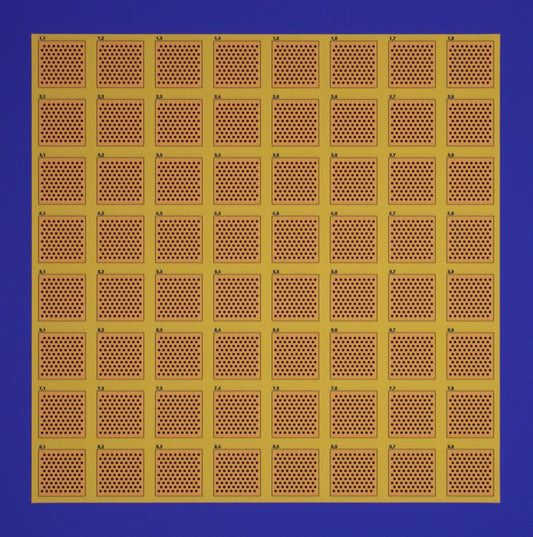

3-var Imaging 3 (diameter) 0.5-32 0.5-32 Most TEM holders

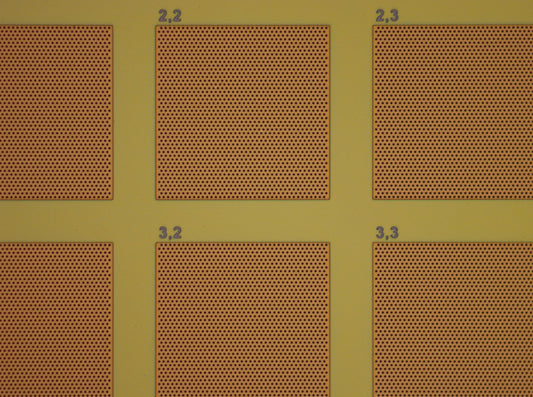

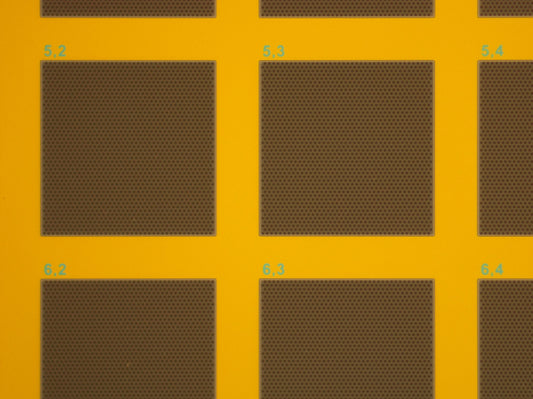

3-1um 1 1

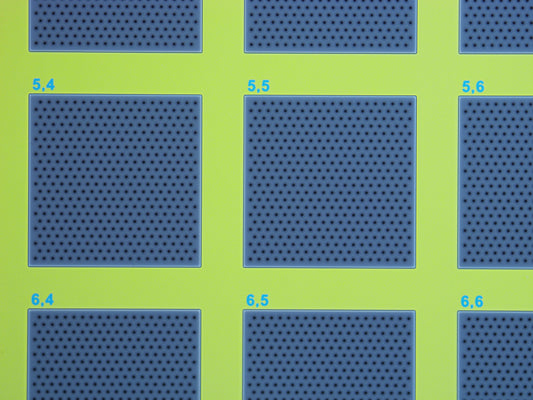

3-1umS 3

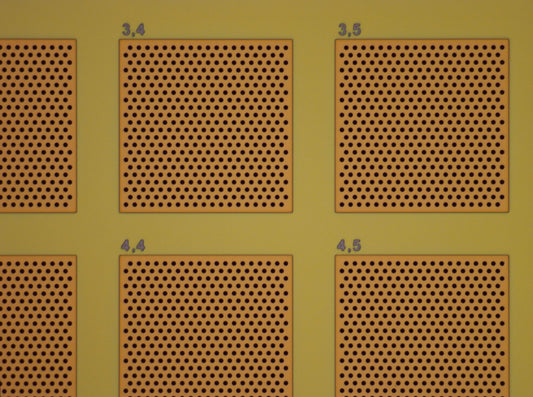

3-2um 2 2
Au200-1um Imaging/
Cryo-EM		 3 (diameter)/
200 mesh		 1 1 Most TEM holders

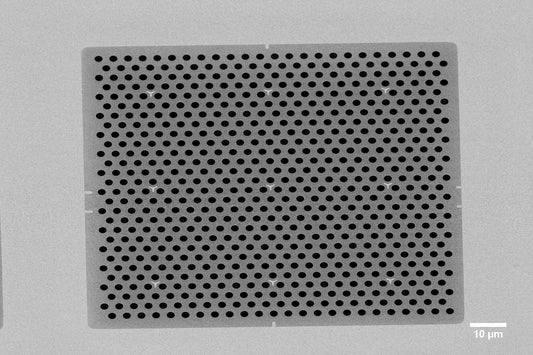

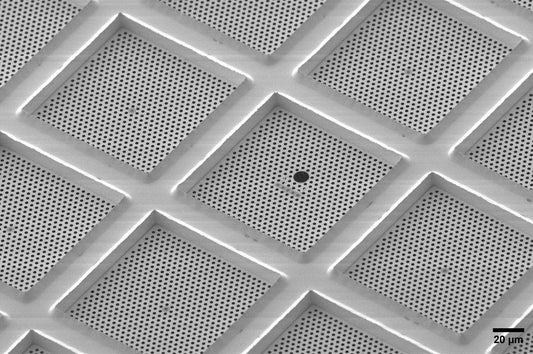

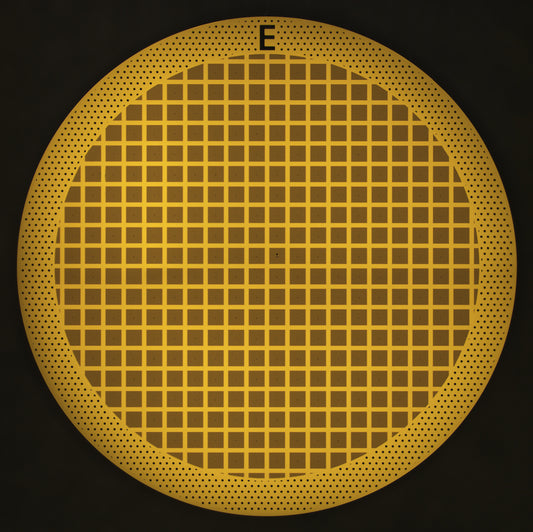

Au200-2um 2 2

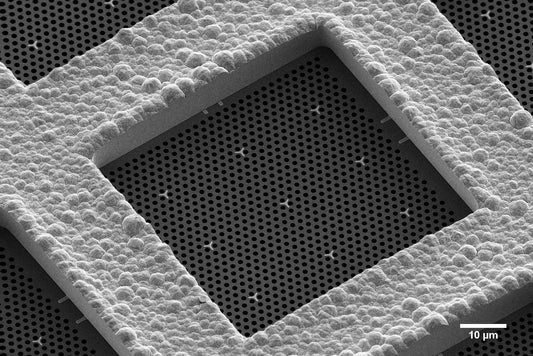

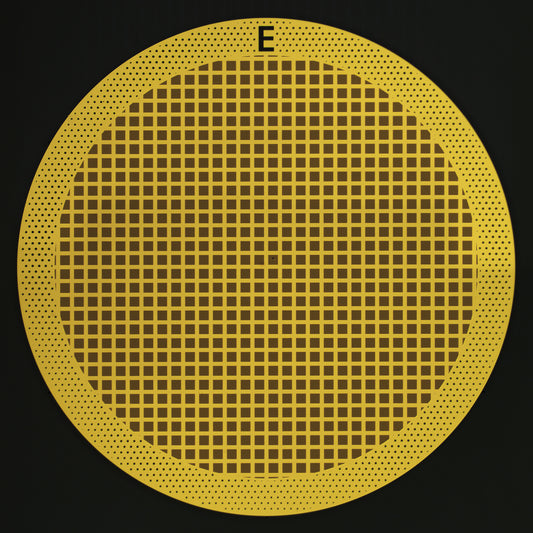

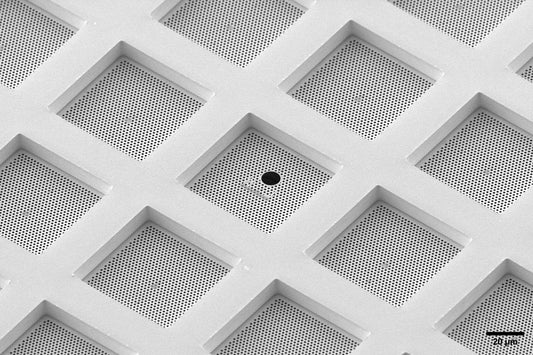

Au300-1um 3 (diameter)/
300 mesh		 1 1

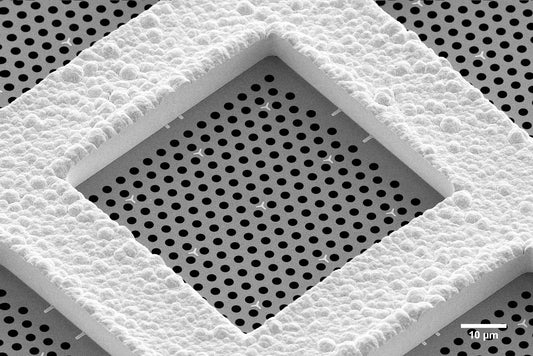

Au300-2um 2 2

* with 8 additional electrodes nearby that can be used as leads for custom (e.g. e-beam) lithography.
