Products

We offer in-situ TEM grids for simultaneous TEM and electrical measurements, ex-situ TEM grids for sequential TEM and electrical measurements, scaffolded silicon nitride grids for general TEM imaging, and all-gold grids for both general TEM imaging and cryo-CLEM.

Electrical
Grids		 Name Measurement
Type		 Dimensions
(mm)		 Electrical
Contacts		 Heating
Contacts		 TEM Holder Type
8x4-4e4h In-situ 8x4 4 0 Thermo/FEI/DENS D9+
4x3-4e2h 3.85x3.175 4 2 Thermo/FEI/DENS D6+
4x3-2e4h 2 4
4x3-4e 3 0 Thermo/FEI/DENS D6
exsitu-4e Ex-situ 3 (diameter) 4* 0 Most TEM holders
exsitu-0e 0*
Imaging
Grids		 Name Measurement
Type		 Dimensions
(mm)		 Hole
Size (μm)		 Hole
Separation		 Membrane
Thickness (nm)
3-var Imaging 3 (diameter) 0.5-32 0.5-32 20

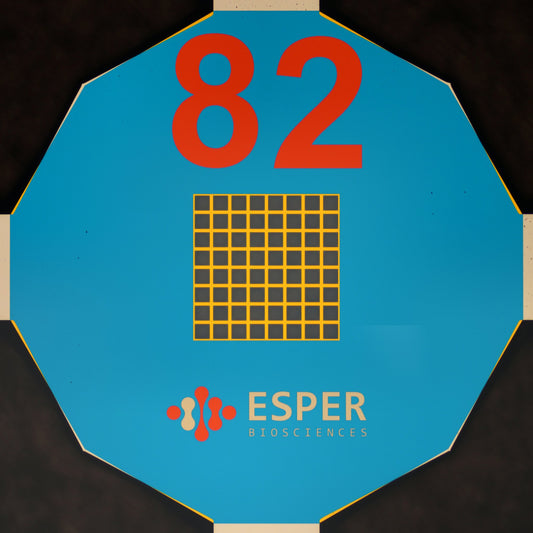

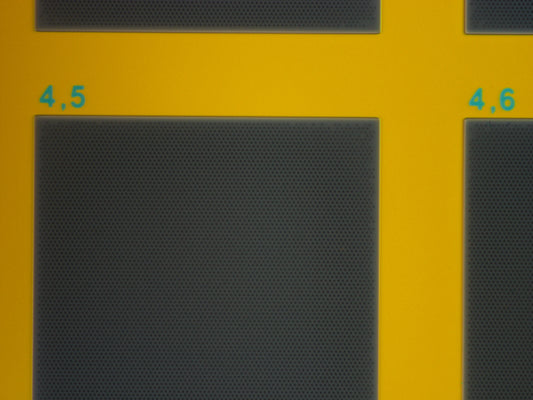

3-500 0.5 0.5
3-1um 1 1
3-1umS 3
3-2um 2 2

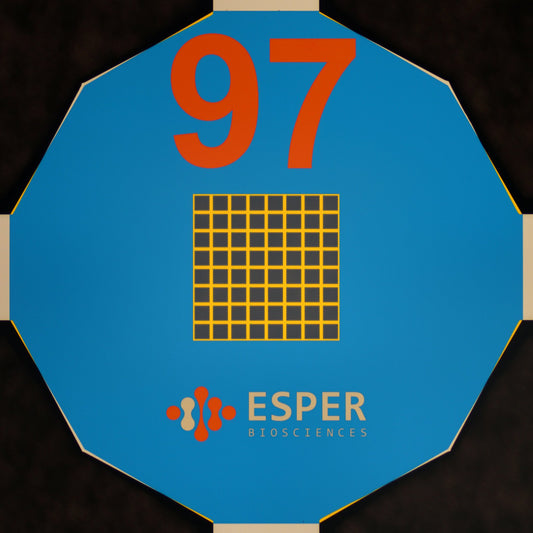

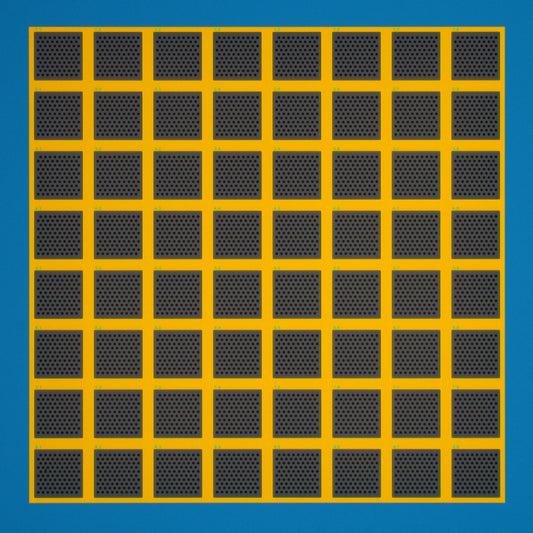

3-4um 4 4

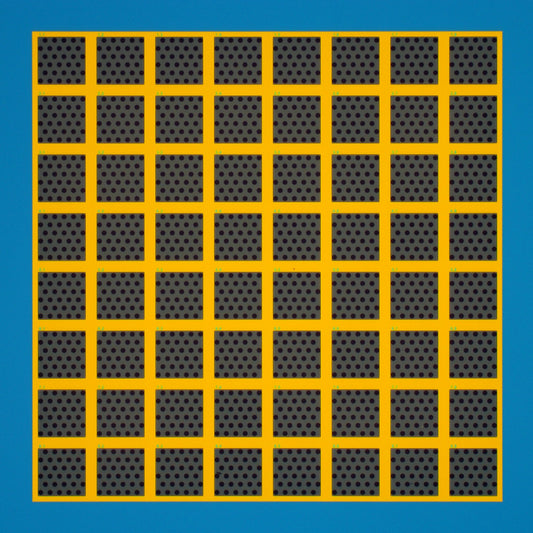

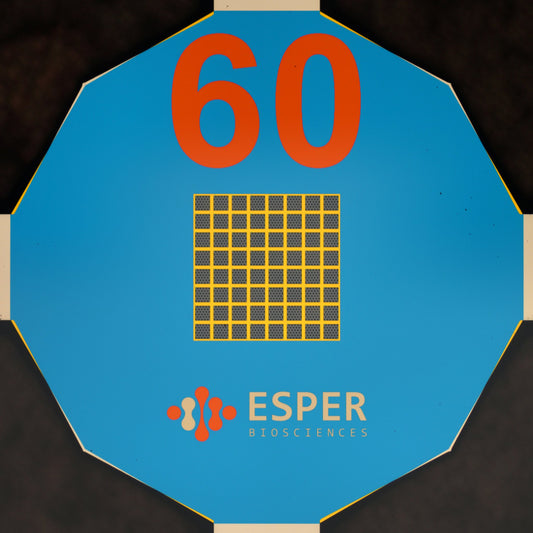

3-8um 8 8
3-var-100 0.5-32 0.5-32 100
3-500-100 0.5 0.5
3-1um-100 1 1
3-2um-100 2 2
3-4um-100 4 4
3-8um-100 8 8
Au200-1um Imaging/
Cryo-EM		 3 (diameter)/
200 mesh		 1 1 25
Au200-2um 2 2
Au300-1um 3 (diameter)/
300 mesh		 1 1
Au300-2um 2 2

* with 8 additional electrodes nearby that can be used as leads for custom (e.g. e-beam) lithography.
