Collection: Ex-situ TEM grids
Ex-situ grids enable each sample to be both TEM-imaged and characterized through electrical transport measurements.
The 3 mm grids are compatible with most TEM grid holders, making them useful for imaging by methods or microscopes that might be incompatible with specialized in-situ grids (often having dimensions that fit a single specialized holder).
Features:
- Compatible with standard TEM holders
- 3 mm diameter, 280 μm height
- Four “device regions” having

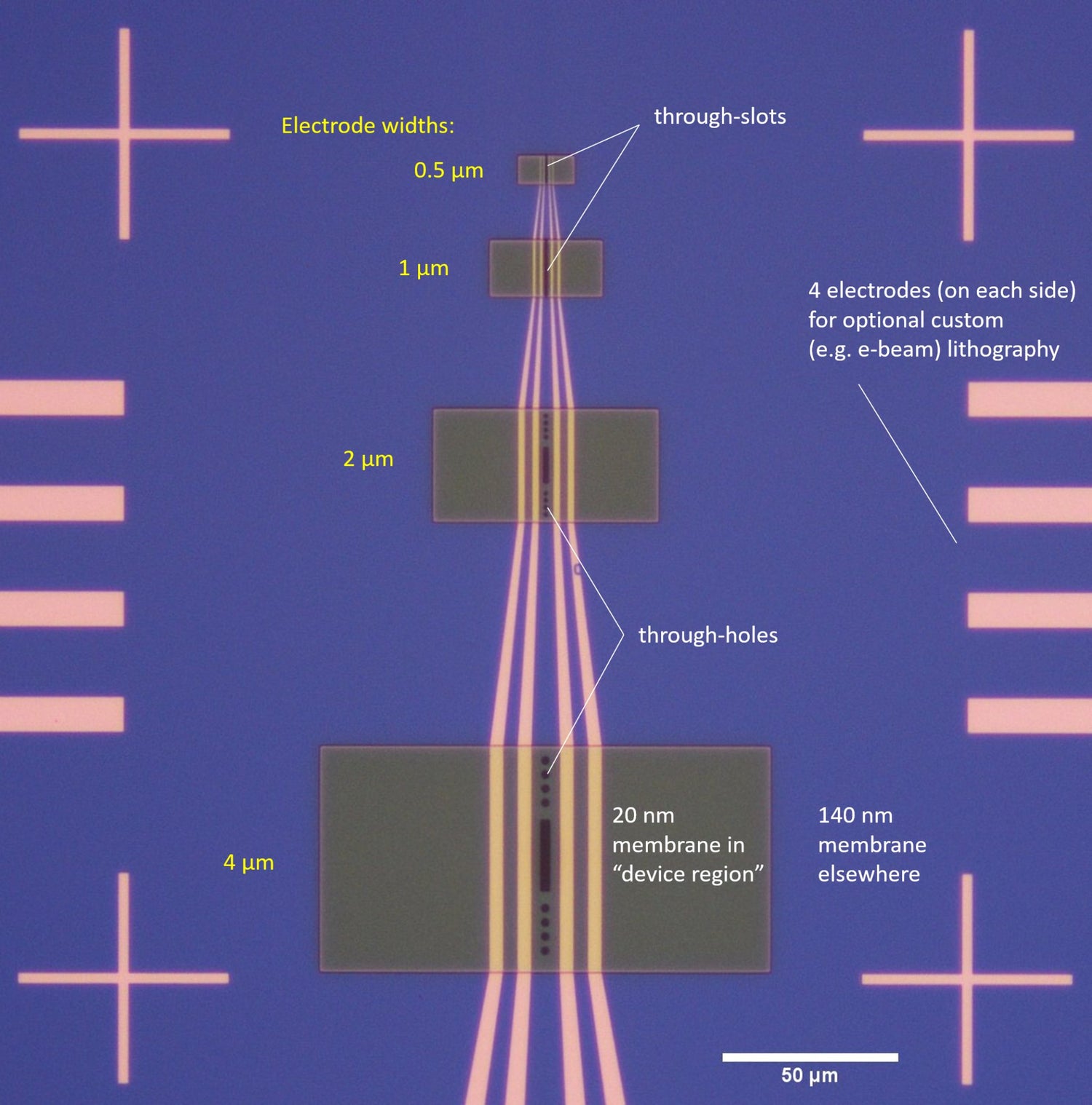

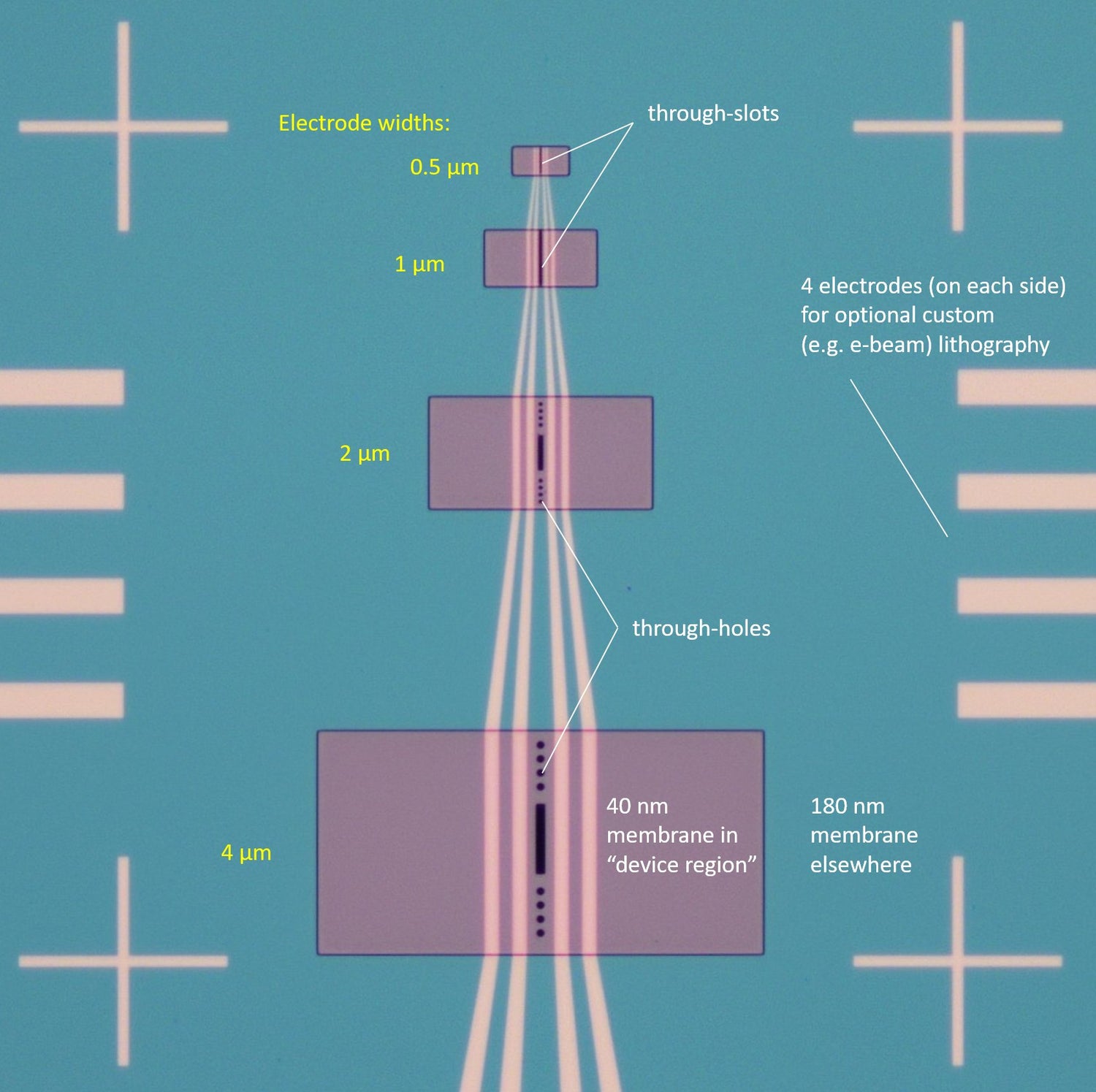

- Four electrode widths: 0.5, 1, 2, 4 μm* to fit a variety of sample sizes
- Electrodes are gold
- Low oxidation
- 25 nm height provides a relatively flat surface (useful for 2D materials)
- A thin ~20 nm nitride membrane for low-background imaging
- Holes/slots for background-free imaging
- Slots for imaging at high tilt angle
- Bulk of the membrane is 140 nm for
- Greater durability when depositing samples
- Greater rigidity when imaging
- No need for wire bonding or probe station*
- 0.5 mm pad spacing* fits off-the-shelf FFC clamps (inquire for more info)
- Optional custom lithography
- 8 nearby electrodes to make contact to via local (e.g. e-beam) lithography
- e.g. to add a top-gate
- 4 alignment marks (240 μm spacing)
- 8 nearby electrodes to make contact to via local (e.g. e-beam) lithography
- Unique device labels readable without a microscope
* exsitu-4e only
-
Ex-situ TEM grid with four electrical contacts (6 pack)
Regular price $399.00 USDRegular priceUnit price / per -
Ex-situ TEM grid for custom lithography (6 pack)
Regular price $399.00 USDRegular priceUnit price / per
